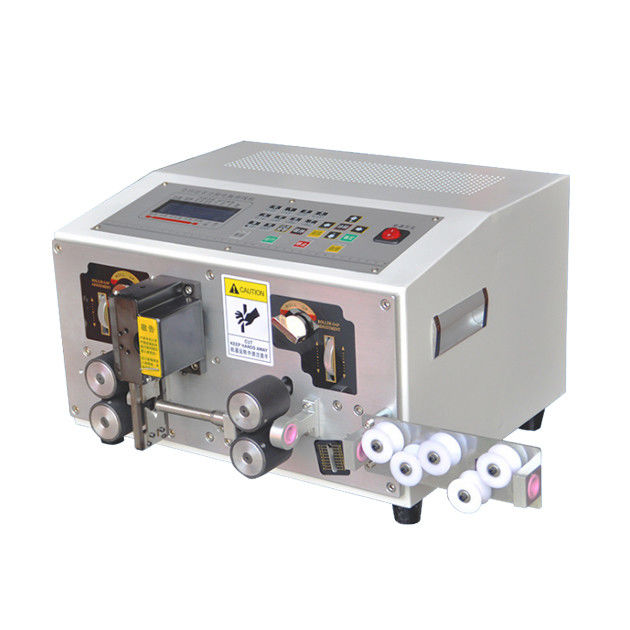

Fully Automatic Wire Cutting, Stripping & Bending Machine

Fully Automatic Wire Cutting, Stripping & Bending Machine
large.img.alt
Fully Automatic Wire Cutting, Stripping & Bending Machine Fully Automatic Wire Cutting, Stripping & Bending Machine

Большие изображения :  Fully Automatic Wire Cutting, Stripping & Bending Machine

Подробная информация о продукте:
Место происхождения: Китай
Фирменное наименование: ELITE
Номер модели: JR-002
Оплата и доставка Условия:
Количество мин заказа: 3 ПК
Цена: Contact Our Sales
Упаковывая детали: Деревянное Casee
Время доставки: 2 недели
Условия оплаты: T/T
Поставка способности: 50 ПК/день

Fully Automatic Wire Cutting, Stripping & Bending Machine

описание
модель: JR-002 Особенности: Провод режа обнажать и гнуть
Поперечное сечение проводника: 2-25mm2 Обнажая длина: 0.1-100мм
Длина вырезывания: 1-100,000mm Резать допуски: ± (0.001xL) mm

Fully Automatic Wire Cutting, Stripping & Bending Machine



This wire bending machine is able to cut, strip and bend wires and cables up to 25mm2. It can strip both ends of the wire, and bend the wire into your requested angle.

This is a high performance wire cutting stripping and bending machine for processing a wide range of wires and cables;

Applicable wire sizes: 2-25mm2

It can not only strip both ends of the wire, but also bend the wire into your requested angle;

The straightforward display provides information in the selected language about the current processing status, very visualized;

The machine is mainly suitable for wire harness processing of electronics, electrical appliances, toys, automobile fittings and other industries;

Affordable price and perfect working performance.



Model JR-002
Features Wire cutting stripping and bending
Conductor cross-section 2-25mm2
Stripping length 0.1-100mm
Cutting length 1-100,000mm
Cutting tolerances ± (0.001xL)mm
Bending length Can be set
Bend shape/angle U shape, Z clockwise, counterclockwise bend, 30°, 45°, 60°, 90°
Production rate L=100mm, 2,000-3,000pcs/h
Power supply 110/220VAC, 50/60Hz
Power 600W
Conduit diameter Generally ⌀ 10mm, can be customized according to wire size
Display screen Chinese/English touch screen
Weight 88KG
Dimensions 95x88x82cm




































Fully Automatic Wire Cutting, Stripping & Bending Machine 0
